Our Solution

From parts to protection — simplified.

You don’t need to be an expert to build a system that works.
Flyaway gives you the structure and components — you decide how it comes together.

01 — Map Your Coverage

Look at where pests enter your space — fences, landscaping, and yard edges.

  • Identify entry points (fences, trees, yard edges)
  • Focus on where people gather (patio, pool, seating areas)
  • Plan a continuous perimeter — not scattered coverage

02 — Assemble Your System

Choose the components that match your space. Pumps, tubing, nozzles, and controls all connect into a unified system designed for consistent performance.

  • Select components based on your layout size
  • Connect pump, tubing, and nozzles into one systems
  • Adjust and expand as your needs grow

03 — Automate & Maintain

Set your schedule and let the system handle the rest. Once it’s running, protection happens automatically with minimal upkeep.

  • Set your timer for peak activity (dawn & dusk)
  • Let the system run automatically
  • Perform simple upkeep to keep everything running smoothly
Everything is designed to be straightforward, adaptable, and easy to manage long-term.

Plan Your Layout

A well-designed system starts with understanding your space.

Instead of guessing, you’re mapping how pests move through your yard — and placing coverage where it actually makes a difference. This step sets the foundation for everything that follows.

Build Your System

Every component plays a role in how your system performs. From pressure to spray consistency, the way your parts come together determines how effective your coverage will be. When everything is aligned, the system runs smoothly without constant adjustments.

01

Automate & Maintain

Once your system is running, it becomes part of your routine — not something you manage daily. With the right setup, protection happens automatically in the background, with only occasional checks to keep everything performing at its best.

02

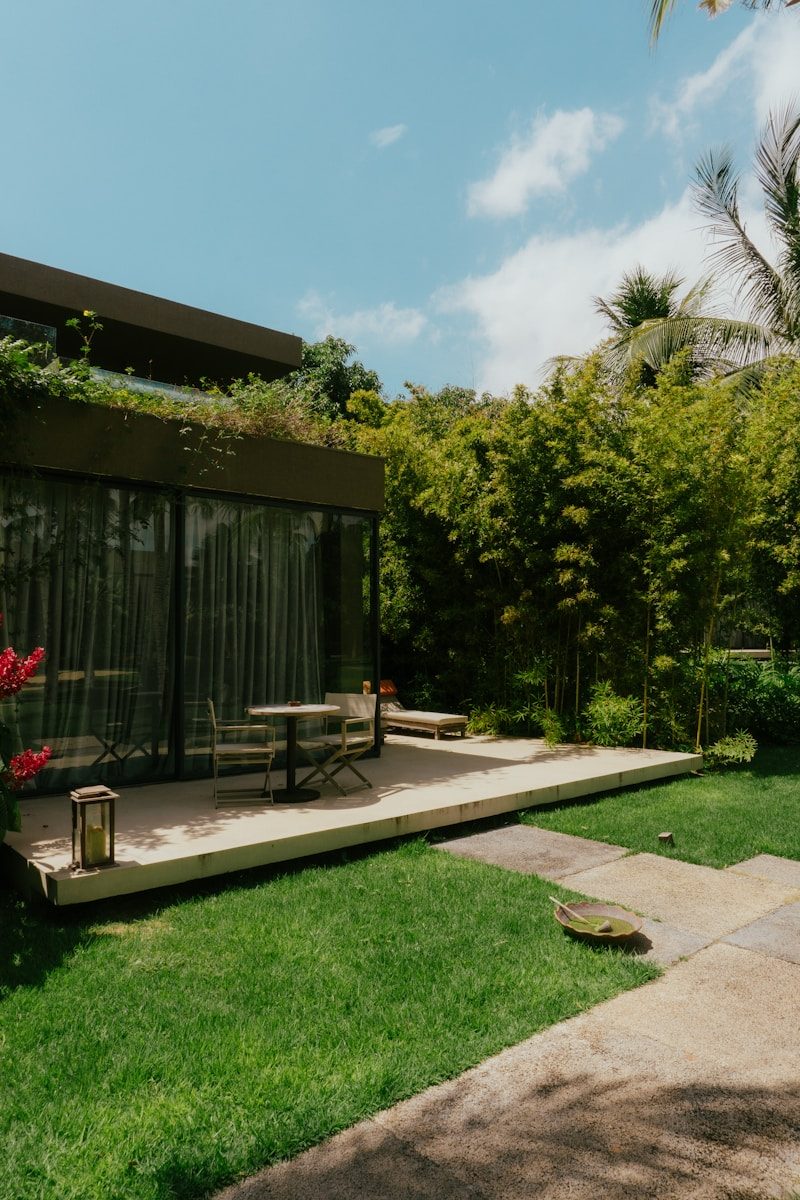

a patio with a table and chairs in the grass
EXAMPLE LAYOUTS

Every property is different.
Every layout starts with one.

Real-world examples of how Flyaway components route together — across residential, commercial, and agricultural properties. Use these as a reference when planning your own system.

Residential
Commercial
Agricultural
LAYOUT 01 · COMPACT BACKYARD Three runs, one tank. Fence-line and patio runs tie into one rear-mounted tank near the back of the house. AERIAL VIEW · NOT TO SCALE HOUSE PATIO DRIVE N TOTAL NOZZLES 18 single tank single line daisy-chains all runs ROUTING Fence-line tubing Mounted inside the backyard fence House & patio run Covers the rear wall and patio edge Short buried supply Connects the tank to the routed tubing Tank & pump Placed inside the property, near the rear service area FLYAWAY · PERIMETER MISTING SYSTEMS
LAYOUT 02 · PERGOLA & POOL Lifestyle-first integration. Fence, soffit, and pergola runs operate together from a tank inside the rear yard. AERIAL VIEW · NOT TO SCALE HOUSE POOL PERGOLA N TOTAL NOZZLES ~55 single tank one line daisy-chains all runs ROUTING Fence perimeter Wraps the backyard boundary Full house soffit run Follows the complete rear roofline Pergola run Mounted on beams near the pool Buried supply Short supply from rear tank FLYAWAY · PERIMETER MISTING SYSTEMS
LAYOUT 03 · DINING PAVILION Outdoor kitchen, fully covered. Full house routing feeds the pavilion, bed risers, and perimeter from a rear-yard tank. AERIAL VIEW · NOT TO SCALE HOUSE POOL PAVILION BED N TOTAL NOZZLES ~78 single tank one line daisy-chains all runs ROUTING Fence-line tubing Mid-height on backyard fence Full house soffit run Wraps the complete house outline Pavilion beam routing Mounted on beams and cross-members Bed risers Short risers for planting beds FLYAWAY · PERIMETER MISTING SYSTEMS
LAYOUT 04 · COMMERCIAL · RESTAURANT PATIO Outdoor dining, guest-first. Dense nozzle spacing over the patio, with the tank kept off the street side. AERIAL VIEW · NOT TO SCALE STREET RESTAURANT COVERED PATIO COMMERCIAL SPECTank beside rear patio service area N TOTAL NOZZLES ~40 single tank one line daisy-chains all runs ROUTING Building soffit run Back wall above seating Pergola beam routing Direct coverage over tables Railing perimeter Outer edge of seating area Buried supply Short run to rear patio tank FLYAWAY · PERIMETER MISTING SYSTEMS
LAYOUT 05 · COMMERCIAL · EVENT VENUE Outdoor events, all guests covered. Ceremony, reception, perimeter, and service-area runs are connected to one active system. AERIAL VIEW · NOT TO SCALE CEREMONY RECEPTIONTENT BAR / CATERING VENUE SPECAll coverage runs at the same time N TOTAL NOZZLES ~55 single tank one line daisy-chains all runs ROUTING Property perimeter Surrounds the venue area Reception tent run Nozzles on tent peaks and beams Ceremony coverage Portable perimeter around seating Bar & catering soffit Service area coverage FLYAWAY · PERIMETER MISTING SYSTEMS
LAYOUT 06 · COMMERCIAL · HOTEL POOL DECK Pool deck coverage, one system. Soffit, cabana, bar, and pool-deck runs activate together from a tank near the service side. AERIAL VIEW · NOT TO SCALE HOTEL POOL POOL BAR N TOTAL NOZZLES ~50 single tank one line daisy-chains all runs ROUTING Hotel soffit run Pool-side wall of building Pool deck perimeter Wraps lounge areas Cabana runs Mounted on cabana frames Bar overhang Service counter coverage FLYAWAY · PERIMETER MISTING SYSTEMS
LAYOUT 07 · AGRICULTURAL · BARN & PADDOCK Barn and paddock, one system. Barn, paddock, and service-side runs are connected together with the tank near the building. AERIAL VIEW · NOT TO SCALE BARN PADDOCK HOUSE / SERVICE AGRICULTURAL SPECSingle supply line starts at service side N TOTAL NOZZLES ~46 single tank one line daisy-chains all runs ROUTING Barn routing Mounted along stall-row ceiling or soffit Paddock perimeter Mounted to fence rails Service-side run Daisy-chains from barn side toward the paddock Buried supply Short connection from tank to perimeter FLYAWAY · PERIMETER MISTING SYSTEMS
LAYOUT 08 · AGRICULTURAL · MULTI-BUILDING RANCH Multiple buildings, one misting system. One tank feeds a single daisy-chained line that steps from building to building. AERIAL VIEW · NOT TO SCALE HOUSE BARN EQUIPMENT RANCH SPECSingle supply line daisy-chains each run N TOTAL NOZZLES ~62 single tank one line daisy-chains all runs ROUTING House soffit run Mounted along the rear roofline Barn run Covers stall and work areas Equipment shed run Worker comfort coverage Buried supply One supply line links each building in sequence FLYAWAY · PERIMETER MISTING SYSTEMS
LAYOUT 09 · AGRICULTURAL · POULTRY OPERATION Coop and run, one active system. Coop interior, exterior soffit, and run perimeter are connected together — no separate spray staging. AERIAL VIEW · NOT TO SCALE COOP OUTDOOR RUN COMPOST POULTRY SPECSingle supply line daisy-chains coop, run, and perimeter N TOTAL NOZZLES ~35 single tank one line daisy-chains all runs ROUTING Property fence Outer boundary protection Coop ridge run Over nesting boxes Coop exterior soffit Wraps the structure Run perimeter Mesh enclosure top rail FLYAWAY · PERIMETER MISTING SYSTEMS

Planning your own layout? Our DIY guide walks you through it — from mapping coverage to selecting the right components.

Download planning guide

From installation to automation — we've got you covered.

Whether you’re a DIYer or working with a professional, Flyaway’s proprietary misting system delivers reliable fly and mosquito control for barns, backyards, restaurants, and event venues. Here’s how it all comes together.



01 — System Installation

Built around your space

Flyaway components are built to adapt to any property layout. Identify breeding zones and protection areas before installing your first nozzle.

  • Support for DIYers and professional installers
  • Custom layout with targeted protection zones
  • Full supply of tubing, nozzles, and setup parts
  • On-site mist pattern testing for full coverage
  • Hands-on walkthrough before we leave
02 — Automatic Operation

Set it and let it run

Your system runs on a schedule you control, hitting pests the moment they enter the protection zone and building a barrier that keeps them away.

  • Pre-set to mist during peak pest activity
  • 5–6 cycles daily for flies, 3 for mosquitoes
  • Customizable timing and 30–50 second duration
  • Immediate lethal dose on contact
  • Ongoing cycles create a lasting barrier
03 — Built to Last

Professional-grade components

Every Flyaway system is engineered with weather-tough materials and smart controls designed to protect your investment for years.

  • 1/2 HP motor, 140 GPH pump, up to 90 nozzles
  • Weather-resistant polyurethane outer shell
  • Tamper-proof lockable enclosure
  • Digital controller with programmable schedule
  • Two remote controls for on-demand treatments

Mounts cleanly on a wall or on top of a 55-gallon poly drum — ready to protect your space from day one.



Start Planning Your System

See exactly how a Flyaway system comes together.

Building a perimeter misting system is simpler than most people expect.

This walkthrough shows how everything connects — from layout to setup — so you can see what it actually takes to get up and running.

Start Planning Your System

Watch Installation Video
